ASAP Chambers
Our Accelerated Stability Assessment Program (ASAP) reach-in chambers deliver exceptional performance for testing applications where vast temperature and humidity ranges are needed.
ASAP testing can significantly reduce the time and resources required for stability testing. However, because this approach requires more extreme environmental conditions, ASAP reach-in chambers must meet exacting standards. Our chambers are engineered to deliver stringent volumetric uniformity and designed for compliance with International Council for Harmonisation (ICH) Q1A.
We’ve provided ASAP reach-ins to leading pharmaceutical companies, food and beverage producers, cosmetics brands, medical device manufacturers, and others. Our chambers are suitable for a wide range of applications including:
- Biomedical storage
- Stability research
- Drug research
- Extended range testing
- Packaging studies
- Freeze/thaw thermal cycling
Versatile ASAP Chamber Design
Our reach-in chamber product line includes seven standard models designed to meet virtually any storage need. Broader customization options are available.
- Temperature setpoint of +70°C, with accuracy of +/-1°C or less
- Maintain 10- to 98-percent relative humidity (RH), with accuracy of +/-5 percent or better
- CO2 injection
- Volumetric uniformity (horizontal and vertical)
- Controlled humidification

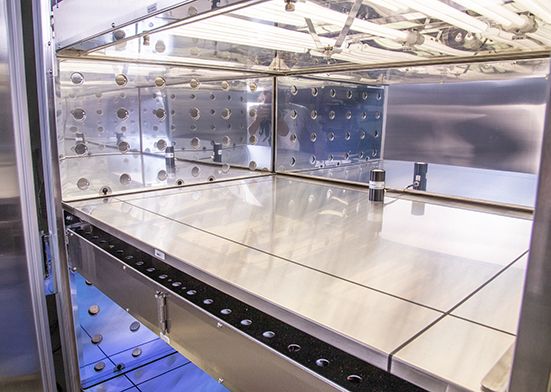

- Twenty-two-gauge, stainless-steel interior
- Scratch-resistant enamel exterior
- Three-inch, closed-cell urethane insulation to promote superior temperature stability and minimal heat transfer
- Heavy-duty door hinges, full peripheral magnetic door gaskets, and positive-action latch with lock for a secure, uniform seal

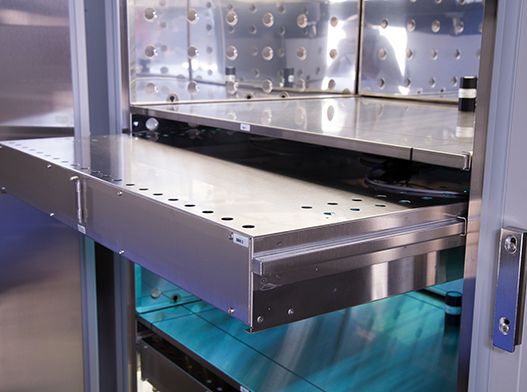

- Shelving supports up to 130 pounds of distributed load
- Floor models have individual non-marking casters with adjustable leveling feet for easy installation
We can design our ASAP chambers to meet a variety of highly specialized requirements, including:
- High RH
- External stainless-steel construction
- Trim for in-wall installation
Model Specs and Sizes
- Benchtop
- Compact
- Upright
- Compact Doublewide
- Upright Doublewide
- Compact Triplewide
- Upright Triplewide
- Volume:
12.0 cubic feet (340 liters) - Exterior Dimensions:
41 x 34.5 x 52.5 inches - Shelves:
2 standard/7 max - Four-wire Electrical Volts / Ø / Amps:
208-230 / 1 / 30 - Weight Range:
350 to 600 pounds
- Volume:
25.2 cubic feet (714 liters) - Exterior Dimensions:
41 x 34.5 x 76.5 inches - Shelves:
4 standard/14 max - Four-wire Electrical Volts / Ø / Amps:
208-230 / 1 / 30 - Weight Range:
425 to 750 pounds
- Volume:
33.8 cubic feet (957 liters) - Exterior Dimensions:
41 x 34.5 x 91.5 inches - Shelves:
4 standard/19 max - Four-wire Electrical Volts / Ø / Amps:
208-230 / 1 / 30 - Weight Range:
450 to 775 pounds
- Volume:
55.0 cubic feet (1,557 liters) - Exterior Dimensions:
82 x 34.5 x 76.5 inches - Shelves:
8 standard/28 max - Four-wire Electrical Volts / Ø / Amps:
208-230 / 1 / 30 - Weight Range:
1,020 to 1,200 pounds
- Volume:
74.2 cubic feet (2,101 liters) - Exterior Dimensions:
82 x 34.5 x 91.5 inches - Shelves:
8 standard/38 max - Four-wire Electrical Volts / Ø / Amps:
208-230 / 1 / 30 - Weight Range:
1,020 to 1,200 pounds
- Volume:
86.0 cubic feet (2,435 liters) - Exterior Dimensions:
123 x 34.5 x 76.5 inches - Shelves:
12 standard/57 max - Four-wire Electrical Volts / Ø / Amps:
208-230 / 1 / 30 - Weight Range:
1,420 to 1,600 pounds
- Volume:
114.8 cubic feet (3,251 liters) - Exterior Dimensions:
123 x 34.5 x 91.5 inches - Shelves:
12 standard/57 max - Four-wire Electrical Volts / Ø / Amps:
208-230 / 1 / 30 - Weight Range:
1,420 to 1,600 pounds
