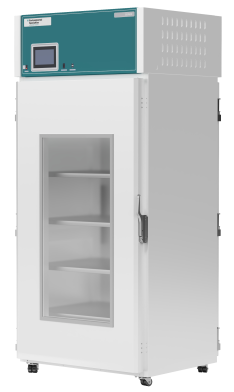

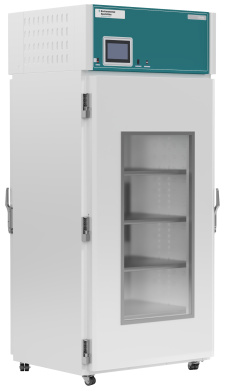

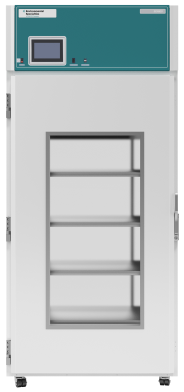

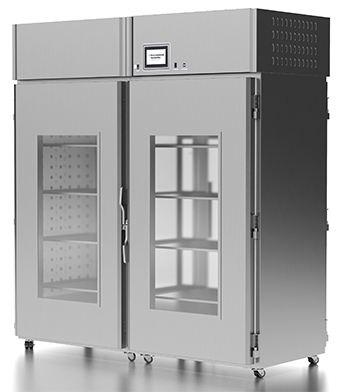

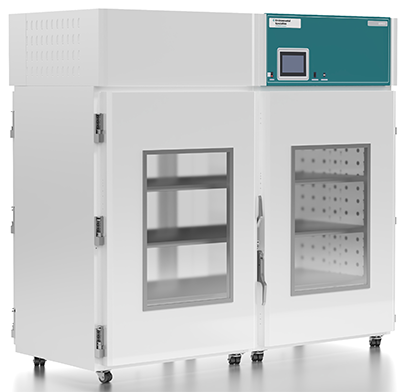

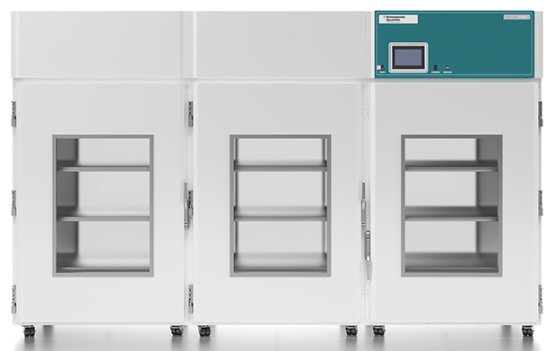

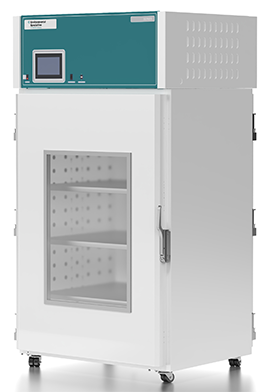

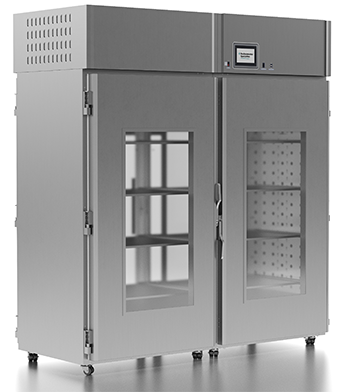

Pass-Thru Chambers
Our pass-thru reach-ins provide the ideal solution for moving material to and from clean room environments without the risk of contamination. Whether introducing material into a clean room or moving items between multiple clean rooms, you can count on our pass-thru chambers for the job. Our skilled engineers have developed a sophisticated reach-in chamber that can meet the requirements of delicate environments that house critical products and equipment.
These chambers are suitable for a wide range of applications found in a variety of demanding industries, including:
- Laboratories
- Food and drug manufacturing
- Pharmaceuticals
- Biotechnology
Versatile Pass-thru Chamber Design
Our reach-in chamber product line includes seven standard models designed to meet virtually any storage need.
- Temperature and humidity controlled
- HEPA filtration to help ensure stored products are not at risk of cross contamination
- Strong volumetric uniformity (horizontal and vertical)
- Twenty-two-gauge, stainless-steel interior
- Three-inch, closed-cell urethane insulation to promote superior temperature stability and minimal heat transfer
- Heavy-duty door hinges, full peripheral magnetic door gaskets, and positive-action latch with lock for a secure, uniform seal
- Custom trim strips for enclosure finishing
- Glass doors
- Stainless steel exterior
We can design our pass-thru chambers to meet a variety of highly specialized requirements, including:
- Windows for light and visibility into or through chamber
- Mirrored control to allow verification of internal conditions from either side of chamber
- NEMA 4X control panel
- Remote conditioning equipment
- Indicator lights, alarms, and interlocks
- Door interlocks
- Mechanical redundancy (DW and TW)
Model Specs and Sizes
- Volume:
25.2 cubic feet (714 liters) - Exterior Dimensions:
41 x 34.5 x 76.5 inches - Shelves:
4 standard/14 max - Four-wire Electrical Volts / Ø / Amps:
208-230 / 1 / 30 - Weight Range:
425 to 750 pounds
- Volume:
33.8 cubic feet (957 liters) - Exterior Dimensions:
41 x 34.5 x 91.5 inches - Shelves:
4 standard/19 max - Four-wire Electrical Volts / Ø / Amps:
208-230 / 1 / 30 - Weight Range:
450 to 775 pounds
- Volume:
55.0 cubic feet (1,557 liters) - Exterior Dimensions:
82 x 34.5 x 76.5 inches - Shelves:
8 standard/28 max - Four-wire Electrical Volts / Ø / Amps:
208-230 / 1 / 30 - Weight Range:
1,020 to 1,200 pounds
- Volume:
74.2 cubic feet (2,101 liters) - Exterior Dimensions:
82 x 34.5 x 91.5 inches - Shelves:
8 standard/38 max - Four-wire Electrical Volts / Ø / Amps:
208-230 / 1 / 30 - Weight Range:
1,020 to 1,200 pounds
- Volume:
86.0 cubic feet (2,435 liters) - Exterior Dimensions:
123 x 34.5 x 76.5 inches - Shelves:
12 standard/57 max - Four-wire Electrical Volts / Ø / Amps:
208-230 / 1 / 30 - Weight Range:
1,420 to 1,600 pounds
- Volume:
114.8 cubic feet (3,251 liters) - Exterior Dimensions:
123 x 34.5 x 91.5 inches - Shelves:
12 standard/57 max - Four-wire Electrical Volts / Ø / Amps:
208-230 / 1 / 30 - Weight Range:
1,420 to 1,600 pounds
